RACINE, Wisc. – The interest in truck-mounted concrete pumps continues to grow amid the push for ever-higher productivity gains on modern construction sites.
Maybe you could call these the boom times.
Forty-five percent of concrete is still poured directly off trucks, in a process referred to as tailgating, but 34% of the material is now pumped into place, Concrete Pumping Holdings reports. The rest is left to move by old-school buckets and wheelbarrows.
Barely two decades ago, concrete pumps accounted for 20% of such work.
It means the business of pumping concrete is annually worth an estimated US $1.75 billion south of the border, and it’s expected to be worth $2.3 billion by 2021.
There is now a market for about 1,000 mobile concrete pumps in North America per year, say officials with Putzmeister, a global supplier of the equipment. Around 10% of those are destined for job sites in Canada.
“These,” says Jonathan Randall, “are the toys we love at Mack Trucks.”
The OEM’s senior vice-president of North American sales and marketing has a good reason to love such equipment. Trucks with bulldogs on their hood serve as the underlying platform for a significant share of concrete pumps.
The engineering behind concrete pumps
These are impressive pieces of machinery.

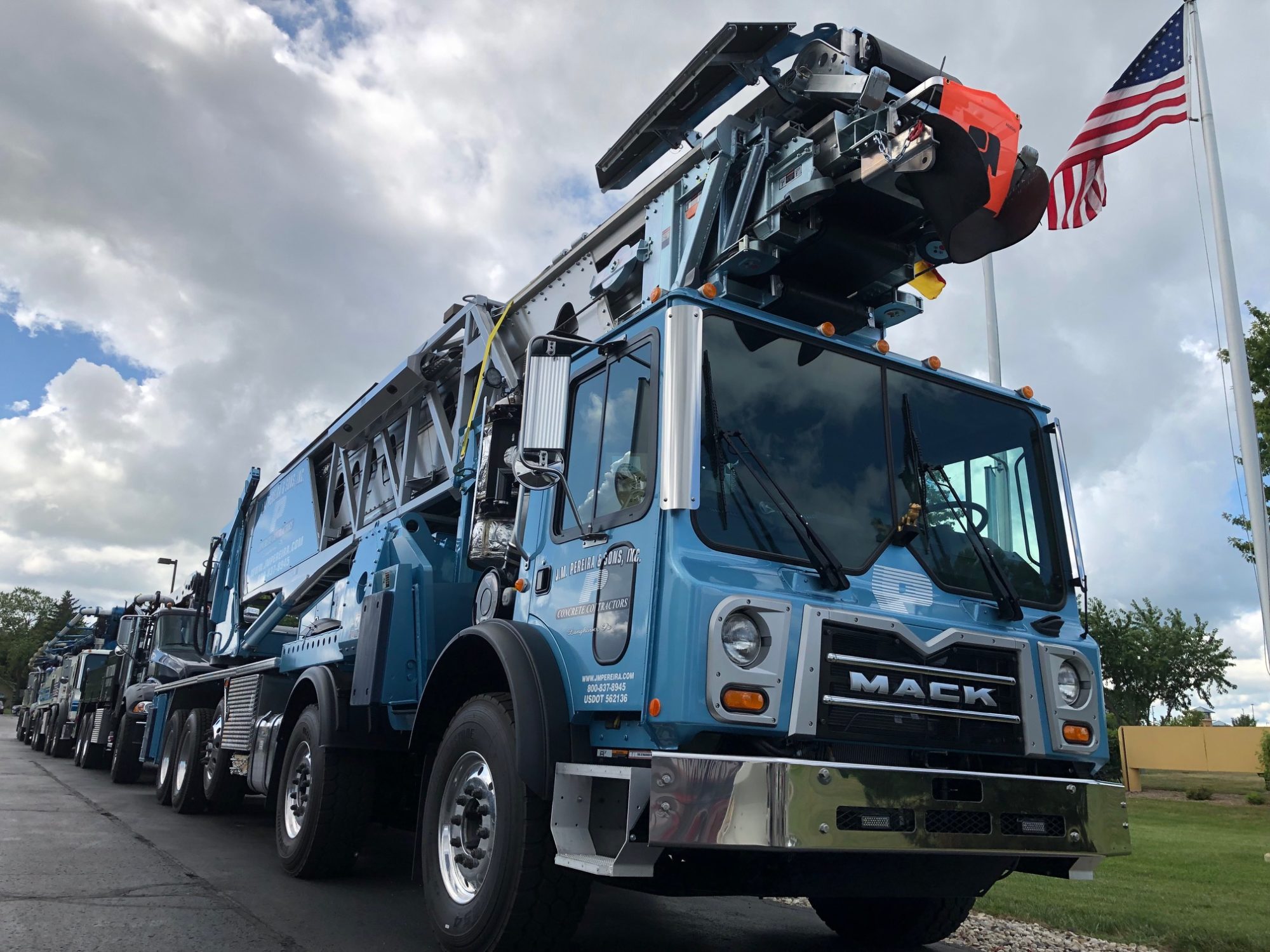

Picture a truck like a Mack Granite or TerraPro with a giant arm — sometimes more than 60 meters long — that unfolds and stretches out to the precise location where concrete needs to be poured. Concrete is fed into a hopper at the rear, while an S-tube shifts back and forth to push the building material up the length of a corresponding five-inch pipe.
Putzmeister America president and CEO Jonathan Dawley says sales of these concrete pumps grew steadily between 2013 and 2019, as fleets replenished equipment that was shed during the last economic downturn.
It’s a global business, too.
The company he oversees, which produces North American concrete pumps at a facility in Wisconsin, was purchased in 2012 by Sany Heavy Industries, which produces pumps for China. Other facilities are located as far afield as India, Germany, and Turkey.
Just across the border in Minnesota, Schwing America produces competing concrete pumps along with truck mixers, truck-mounted loop conveyors, batch plants, and reclaimers. It has seven global manufacturing facilities, and a presence in China’s Xushou Construction Machinery Group (XCMG).
Concrete pumps of one form or another have been behind some of the most widely recognized construction projects in the world. Putzmeister refers to its equipment used to build locks for the Panama Canal, and a bypass for the Hoover Dam. It actually set a Guiness World Record in February 2014 when pumping 21,200 cubic yards of concrete for the Wilshire Grand Center’s foundation in Los Angeles. Schwing projects include New York City’s Freedom Tower, which required a pair of high-pressure stationary pumps to push concrete over 1,600 vertical feet.
But the mobile truck-mounted equipment requires advanced engineering in its own right.
Putzmeister is currently placing the finishing touches on an eight-axle truck with a 63-meter boom destined for Quebec’s Pomages De Beton TPG, once the loads are equalized on axles in the fourth, fifth and sixth positions. The final piece will weigh in at 128,900 lb. A similar unit is destined for Pompes a Beton Tremblay. Schwing America, meanwhile, is preparing to ship a truck of its own to Montreal. That unit will feature a 61-meter boom and weigh in at 113,000 lb.
“The rigidity of the product, the durability of the product is paramount,” Dawley says, referring to the trucks that can push 238 cubic yards of concrete per hour up to 70 meters in the air.
Concrete pumps can last 10-15 years with the right care, too, and they can be profitable despite price tags that sometimes reach above US $1 million.
Concrete pump maintenance
It doesn’t mean the work is easy, though. Pouring concrete involves a race against the clock. A load of ready-mix concrete has a shelf life of just 90 minutes, says Tom O’Malley, Schwing America’s senior vice-president of sales and marketing.
To compound matters, new additives and accelerators continue to shrink the available timelines, which can already vary depending on everything from the time of year to concrete temperatures.
“It’s not just sand, water, and rock,” says Tom Inglese, general manager for Pioneer Concrete Pumping, headquartered in Atlanta, Ga.
“Concrete pumping is tricky business. Concrete don’t wait for anybody.”
His observation is especially true when it comes to any concrete that remains in the pipe. Left to harden, the building material can cause expensive and irreversible damage.
Once a pour is completed, hard rubber plugs known as “go devils” need to be forced through the pipe under the power of compressed air, squeezing through curves known as the “candy cane” until they emerge.
That’s when everything goes as planned. Teams are sometimes left to manually knock and shake the pipes to try to clear any blockages.
“It can be a really stressful thing at times,” Inglese says.
If the pipes are not cleared? “You’ve got really expensive fence posts.”
Maintenance support for concrete pumps
Ongoing maintenance support makes the difference when it comes to maintaining the all-important uptime.
This equipment moves undeniably abrasive material, and the S-tubes themselves are a source of metal-on-metal wear.
The pipes themselves, traditionally the biggest wear items, typically last two to three years. The booms, meanwhile, are moving mechanisms that require care of their own.
“That boom tip can be damaged, either hitting things or doing things it wasn’t meant to do,” Dawley says.
And there are clearly plenty of bearings to grease.
While automatic lubricating systems are available, most operations choose to apply their grease manually. “The takeup on that option might be 10% of sales,” Dawley says.
But no matter what process is followed, the goal is to keep everything on the move.
